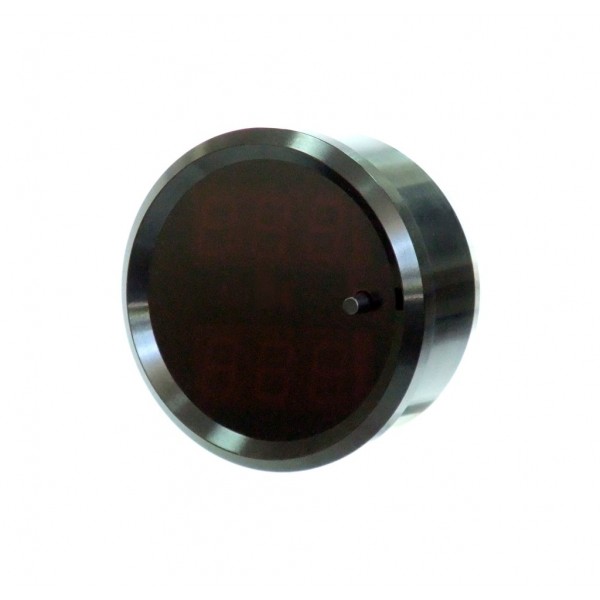

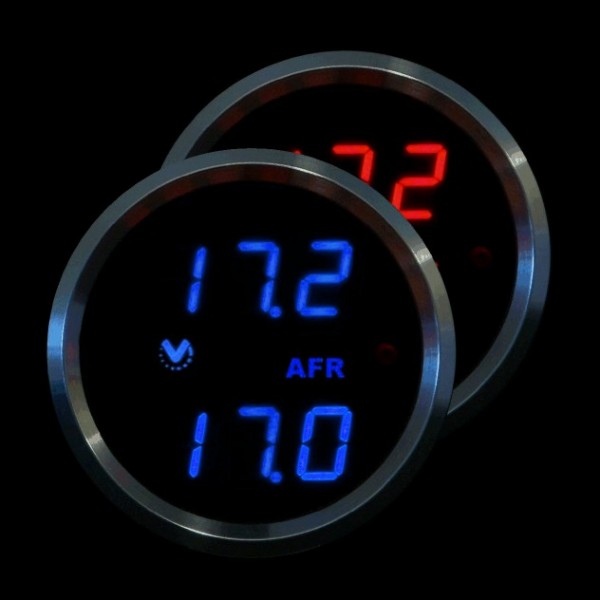

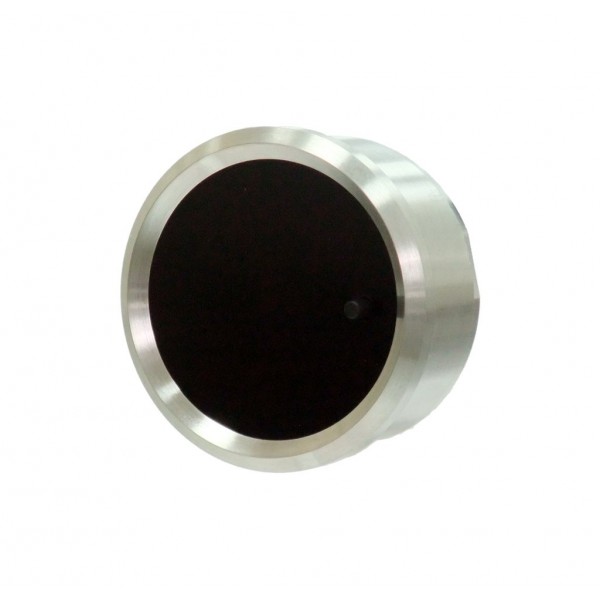

Dual Wideband Air-Fuel Ratio Monitor

Displays Vacuum-Boost Pressure and Wideband Air-Fuel Ratio simultaneously.

Range, channel 1: 0.00 to 9.99, 0.0 to 99.9 or 0 to 999 (user configurable)
Range, channel 2: 0.00 to 9.99, 0.0 to 99.9 or 0 to 999 (user configurable)
Channel-swap feature swaps display position
User-settable active IIR filter level for Wideband AFR display (for each display channel)
Independent A/F curves allow for different controllers.
Dual 3-digit numeric displays
Park-light dimmer
User-settings button directly on gauge face
User-settable day and night intensities (9 levels each)

Colors:
Bezel: Silver (natural aluminum) or Black anodized
Display: Bright Red, Ice Blue, or Atomic Orange

Gauge size:
2-1/16″(52mm) mounting diameter

Sensors required:
Wideband controller with matching wideband oxygen sensor (2 required, not included).

The following wideband controllers list a 0-4V or 0-5V linear output that will work with this display:

AEM – 30-4113, 30-4123, 30-4213, 304223
Dynojet – Wideband Commander
Innovate – LC-1, LM-1
PLX – M-250, M-300, R-300, R-500, SM-AFR
TurboXS – Tuner REG, Tuner PRO
WMS Racing – WBS1, WBS2
Zeitronix – Zt2

Models:
D1K-WBA-WBA-Mxy (Bar units)
