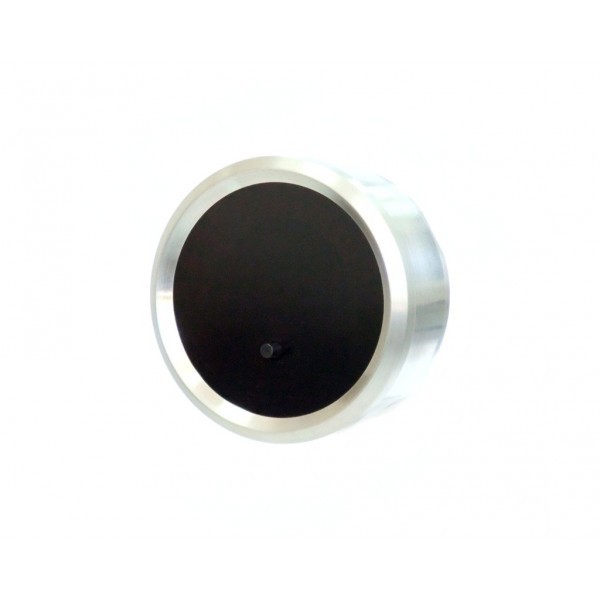

V1 Series Universal Wideband Air-Fuel Ratio Monitor

This Universal Wideband Air-Fuel Ratio Display can be used with of the popular wide-band air-fuel ratio controllers that puts out a linear signal of 0 Volts to 5 Volts or near to range. You can set up almost any positive-slope or negative-slope linear equation by programming the display value represented by each of these endpoints. See chart below for list of known controllers with 0-4V or 0-5V linear outputs.

Range: 0.00 to 9.99, 0.0 to 99.9 or 0 to 999 (user configurable)
Range: 0.00 to 9.99, 0.0 to 99.9 or 0 to 999 (user configurable)
User-settable active IIR filter level
User-selectable dot or bar mode for bargraph
Park-light dimmer
User-settable day and night intensities (9 levels each)

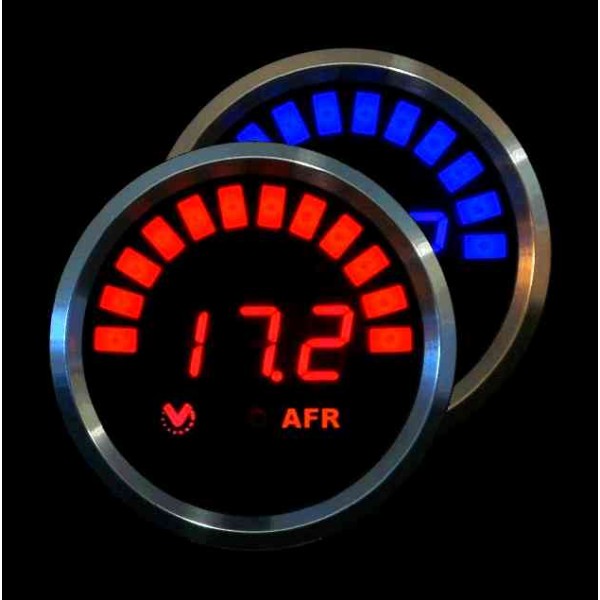

12-segment bar graph AND 3-digit numeric display

Sensor required:
Wideband controller with matching wideband oxygen sensor (required).

The following wideband controllers list a 0-4V or 0-5V linear output that will work with this display. Others can work also:

AEM – 30-4113, 30-4123, 30-4213, 30-4223
Daytona Sensors – WEGO, WEGO III
Dynojet – Wideband Commander
Innovate – LC-1, LC-2, LM-1
PLX – M-250, M-300, R-300, R-500, SM-AFR
TurboXS – Tuner REG, Tuner PRO
WMS Racing – WBS1, WBS2
Zeitronix – Zt2
