V1 Series Universal Voltage-Signal Monitor

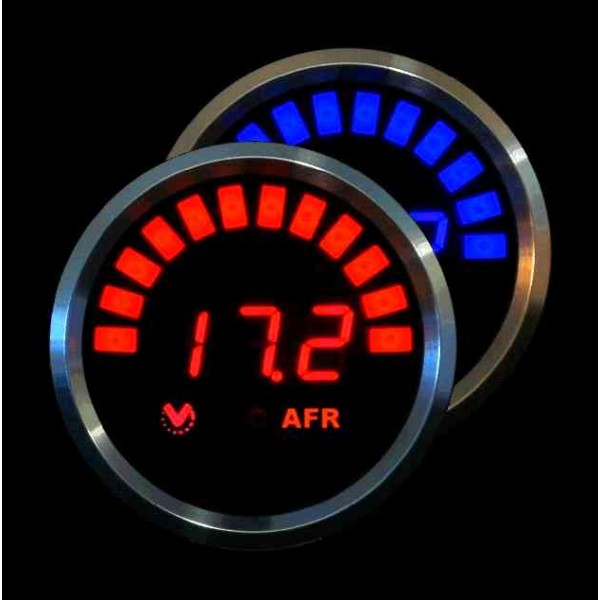

This Universal Voltage-Input Monitor is an amazing little gauge. It can be used with any sensor, controller or device that puts out a signal of 0 Volts to 5 Volts (or within that range). Set up almost any positive-slope or negative-slope linear equation by programming the display value represented by each of these endpoints. For example, it can also be used with active/powered transducers. The function symbol (lower right on gauge-face) is a generic “asterisk”.

Range: 0.00 to 9.99, 0.0 to 99.9 or 0 to 999 (user configurable)
User-settable active IIR filter level
User-selectable dot or bar mode for bargraph
Park-light dimmer
User-settable day and night intensities (9 levels each)
12-segment bargraph AND 3-digit numeric display

Sensor required:
This gauge will work with almost any sensor that puts out a linear signal of 0V to 5V or within that range.You can also use resistive-sensors configured as part of a voltage divider with another fixed resistor.
