SN95 Ford Mustang Clock-Housing Multi-Function Gauge
Drop-in gauge module that replaces the clock on your SN95 Mustang dash to show one or several different functions.
Drop-in gauge module that replaces the clock on your SN95 Mustang dash to show one or several different functions.

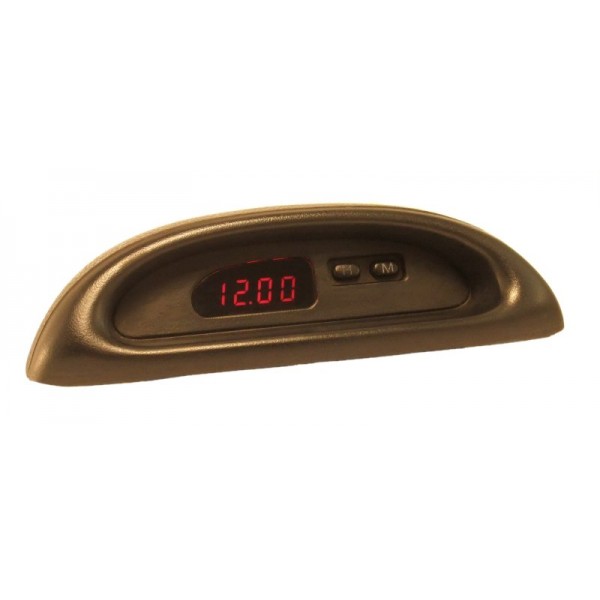

This nifty drop-in gauge module replaces the electronics in the clock on your SN95 Mustang dash to show a single function, or one of 7 different functions, selectable with the tap of a button. Also includes a clock, so you don't lose that function.
The single-function version comes in any one of these functions (and retains the clock function): Ethanol ratio, intake-air temperature, oil pressure, oil temperature, vacuum-boost, voltmeter, water/coolant temperature, or wideband AFR. Sensors are included based on the function selected, except wideband AFR which requires an aftermarket external sensor/controller with a 0-5V output.
The multi-function version has all of the following functions, selectable with the tap of a button: Clock, intake-air temperature, oil pressure, oil temperature, vacuum-boost, voltmeter, water/coolant temperature, and wideband AFR. Available without sensors (add individually as you need later) or with all sensors (except aftermarket 0-5V wideband controller) included.

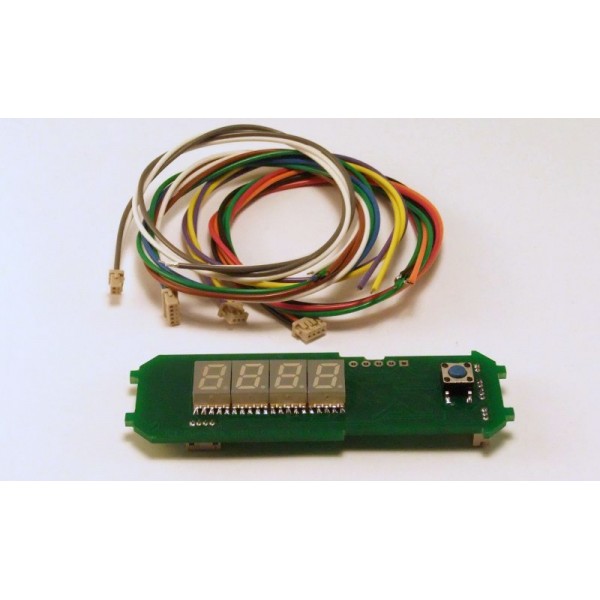

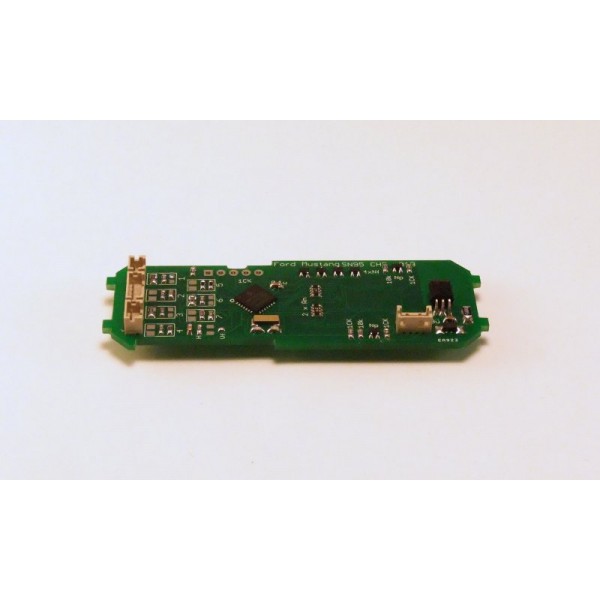

Note that the housing itself is not included: you replace the clock PC board inside your existing dash clock with this gauge module.
