Open-frame dual-function Oil Pressure & Wideband AFR module for custom installations

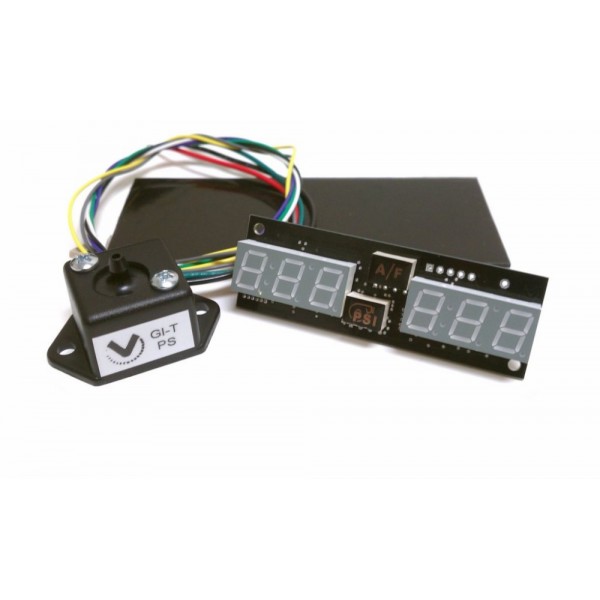

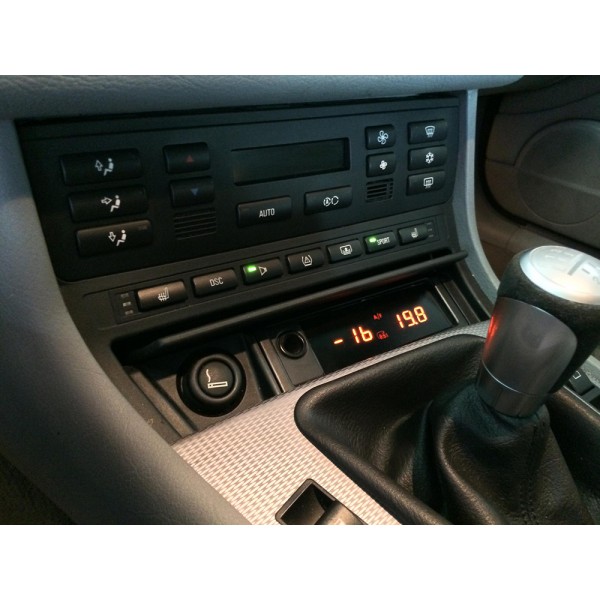

Use this compact dual-function gauge module for custom installations in A/C vents, ashtrays, DIN pockets, or other locations for a factory OEM look. The module comes with a small power supply, an oil pressure sensor and a piece of our non-glare front filter material which you can cut and sand to the exact size and shape you need for your custom installation.

Features & Functions:
Displays Oil Pressure and Wideband Air-Fuel Ratio simultaneously.

Range, oil pressure: 0-100PSI, 0-150PSI, 0-6.9Bar, or 0-10.3Bar (depending on model selected)
Resolution, oil pressure: 1-PSI
Range, wideband display: 0.00 to 9.99, 0.0 to 99.9 or 0 to 999 (user configurable)
User-settable active IIR filter level for Wideband AFR display (channel 2)
Dual 3-digit numeric displays
Park-light dimmer
Control wire allows use of an external pushbutton switch for gauge settings.
User-settable day and night intensities (9 levels each)

Sensors included & required:
Oil Pressure: SEN-P101B (100PSI or 6.9Bar model), or SEN-F151 (150PSI or 10.3Bar) included.
Wideband controller with matching wideband oxygen sensor that has a linear 0-5V output (required).
