Open-frame dual-function Vacuum-Boost & AFR module for custom installations
Compact dual-function vacuum-boost and wideband AFR open-frame gauge module for custom installations.
Compact dual-function vacuum-boost and wideband AFR open-frame gauge module for custom installations.

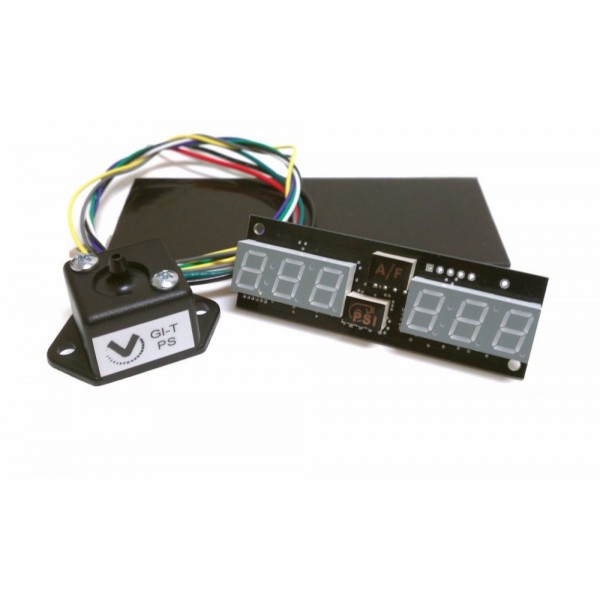

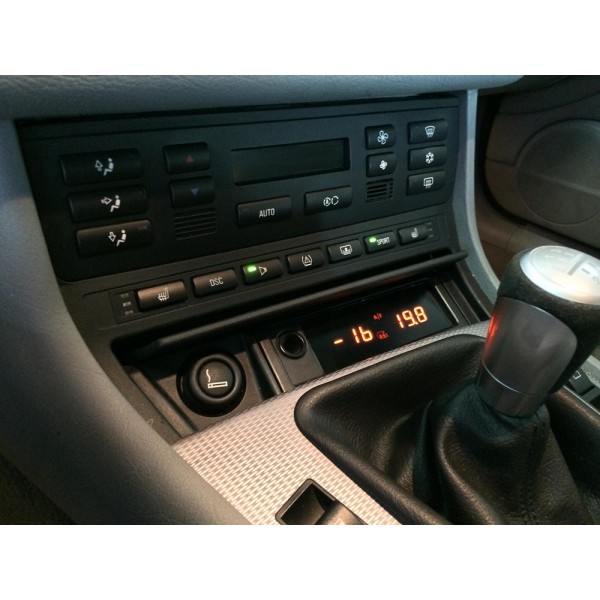

Use this compact dual-function gauge module for custom installations in A/C vents, ashtrays, DIN pockets, or other locations for a factory OEM look. The module comes with a small power supply with integrated boost sensor and a piece of our non-glare front filter material which you can cut and sand to the exact size and shape you need for your custom installation.
Features & Functions:
Displays Vacuum-Boost Pressure and Wideband Air-Fuel Ratio simultaneously.
Range, vacuum-boost: < -30 in. Hg to > 90 PSI
Resolution, vacuum-boost: 1-PSI (BOP model) or selectable 1-PSI, 0.5-PSI, 0.1-PSI (BHP model).
Range, wideband display: 0.00 to 9.99, 0.0 to 99.9 or 0 to 999 (user configurable)
User-settable active IIR filter level for Wideband AFR display (channel 2)
Dual 3-digit numeric displays
Park-light dimmer
Control wire allows use of an external pushbutton switch for gauge settings.
User-settable day and night intensities (9 levels each)
Sensors included & required:
Vacuum-Boost Pressure: SEN-P70B with integrated power (included).
Wideband controller with matching wideband oxygen sensor that has a linear 0-5V output (required).
