D1-Series Dual Oil Pressure & Oil Temperature Monitor
Dual Monitor -- Oil Pressure and Oil Temperature
Dual Monitor -- Oil Pressure and Oil Temperature
Features & Functions:
Range, oil pressure: 100 PSI / 6.9 Bar or 150 PSI / 10.3 Bar (depending on selected sensor)
Range, oil temperature: 90 to 320 degrees Fahrenheit or 32 to 160 degrees Celsius
Upper and lower user-settable alarms for both
Channel-swap feature swaps display position
Choice of 100 PSI / 6.9 Bar or 150 PSI / 10.3 Bar sensors

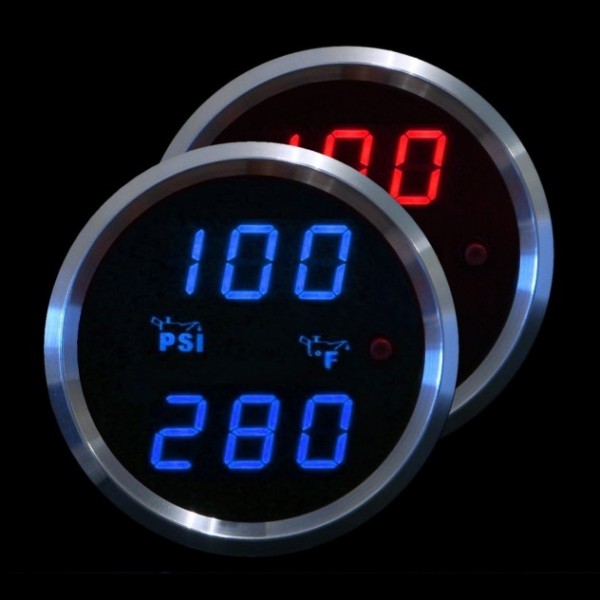

Dual 3-digit numeric displays
Park-light dimmer
User-settings button directly on gauge face
User-settable day and night intensities (9 levels each)
Colors:

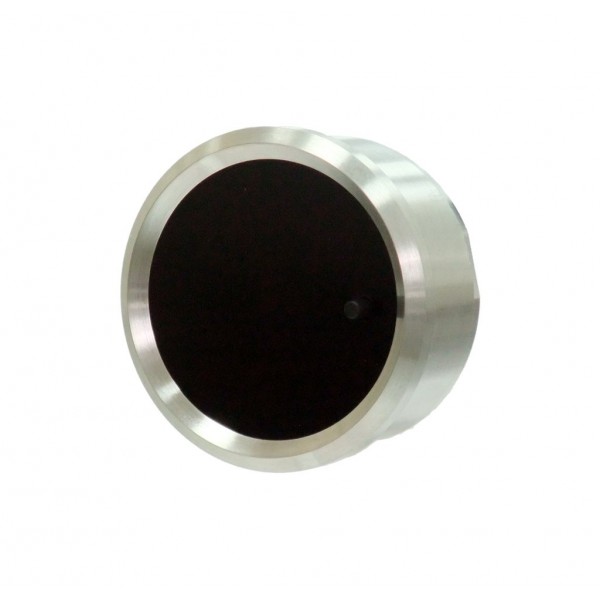

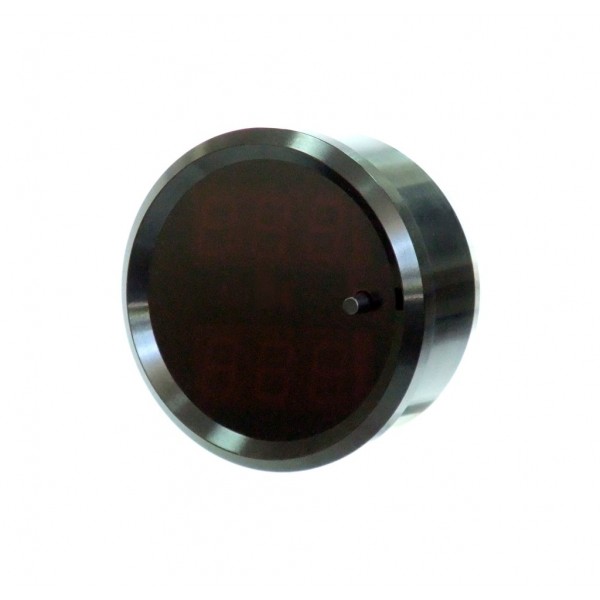

Bezel: Silver (natural aluminum) or Black anodized
Display: Bright Red, Ice Blue, or Atomic Orange
Gauge size:
2-1/16″(52mm) mounting diameter
Sensors included:
Oil Pressure sensor: SEN-P101B (100 PSI / 6.9 Bar) or SEN-F151 (150 PSI / 10.3 Bar)
Oil Temperature sensor: SEN-T320D
Models:
D1K-OPBA-OTC-Mxy (Bar/Celsius units with SEN-P101B & SEN-T320D)
D1K-OPBB-OTC-Mxy (Bar/Celsius units with SEN-F151 & SEN-T320D)
D1K-OPPA-OTC-Mxy (PSI/Celsius units with SEN-P101B & SEN-T320D)
D1K-OPPB-OTC-Mxy (PSI/Celsius units with SEN-F151 & SEN-T320D)
D1K-OPPA-OTF-Mxy (PSI/Fahrenheit units with SEN-P101B & SEN-T320D)
D1K-OPPB-OTF-Mxy (PSI/Fahrenheit units with SEN-F151 & SEN-T320D)
