Open-frame single-function gauge module for custom installations

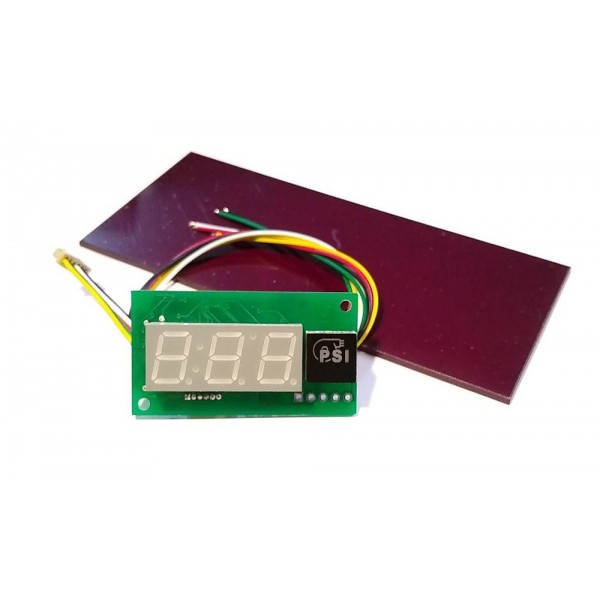

Use this compact single-function gauge module for custom installations in A/C vents, ashtrays, DIN pockets, or other locations for a factory OEM look. The module comes with an integrated power supply and a piece of our non-glare front filter material which you can cut and sand to the exact size and shape you need for your custom installation.  Matching sensors are provided for most functions as indicated.

Available Functions:

• Ethanol-to-gasoline ratio with 0-5V analog output (includes SEN-FF1 ethanol-to-gasoline ratio sensor)
• Fuel level (calibratable to work with most fuel-level sensors)
• Intake air temperature (includes SEN-IAT2E temperature sensor)
• Oil pressure, 0-100 PSI (includes SEN-P101C active pressure sensor)
• Oil pressure, 0-150 PSI (includes SEN-P151C active pressure sensor)
• Oil temperature 90 deg-F to 320 deg-F (includes SEN-T320D temperature sensor)
• Point-of-load (remote sense) Voltmeter(no sensor required)
• Transmission temperature 90 deg-F to 320 deg-F (includes SEN-T320D temperature sensor)
• Vacuum-boost w/Peak recall, < -30 in. Hg to > 90 PSI (includes SEN-P70B vacuum-boost sensor)
• Water/coolant temperature 90 deg-F to 320 deg-F (includes SEN-T320D temperature sensor)
• Wideband air-fuel ratio (configurable to work with most aftermarket air-fuel ratio contollers/sensors with a 0-5V range sensor)Range, vacuum-boost: < -30 in. Hg to > 90 PSI

Other Features (depending on gauge function):

User-settable upper and lower alarms
3-digit numeric displays
Control wire allows use of an external pushbutton switch for gauge settings.
Park-light dimmer
User-settable day and night intensities (9 levels each)

Sensors included & required:
Vacuum-Boost Pressure: SEN-P70B with integrated power (included).
Wideband controller with matching wideband oxygen sensor that has a linear 0-5V output (required).

Oil temperature 90 deg-F to 320 deg-F (includes SEN-T320D temperature sensor)
